ASTM A234 chrome-moly 45°, 90° and 180° buttweld elbows in long and short radius for high-temperature steam, boiler and refinery piping.
Tubewell Steel & Engg. Co. manufactures, stocks and supplies alloy steel elbows from Mumbai, India in ASTM A234 WP5, WP9, WP11, WP22 and WP91. Our 45°, 90° and 180° long radius and short radius elbows change pipeline direction smoothly while matching the creep strength and corrosion resistance of the connected A335 pipe.
Direction-changing fittings for high-temperature alloy piping

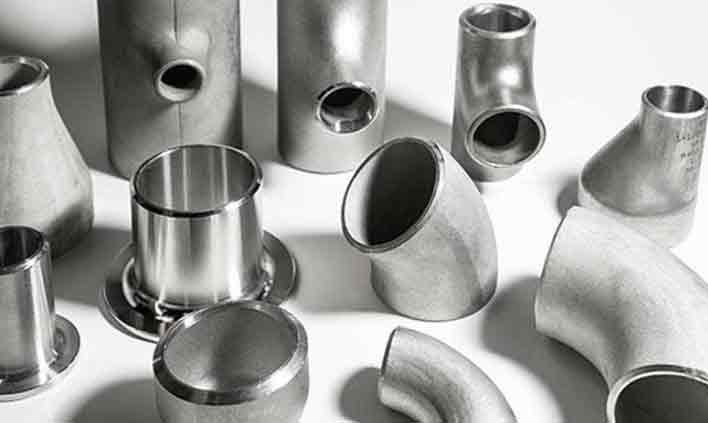

Alloy steel buttweld elbows are wrought fittings that change the direction of flow by 45°, 90° or 180° in chrome-moly piping systems. Long radius (LR) elbows have a centerline radius of 1.5 times the nominal pipe size and are preferred for lower pressure drop, smoother flow and reduced erosion, while short radius (SR) elbows with a 1D radius are used where space is limited. 180° return bends are commonly used in heater coils and heat exchanger circuits.
Our elbows are hot formed from seamless A335 pipe on mandrel or by hot-press methods, then heat treated as required by ASTM A234 for the selected grade – annealed or normalized and tempered for WP5 to WP22, and normalized and tempered for WP91. Each elbow is checked for wall thickness at the extrados and intrados, ovality and center-to-end dimensions per ASME B16.9, bevelled per ASME B16.25 and supplied with EN 10204 3.1 certificates.
Standard supply range for alloy steel buttweld elbows
| Parameter | Details |
|---|---|
| Standard | ASTM A234, ASME SA234 |
| Grades | WP5, WP9, WP11 (Cl.1/2/3), WP22 (Cl.1/3), WP91 |
| Dimension Standard | ASME B16.9 (LR & SR), ASME B16.28, MSS SP-43 |
| Size (NB) | Seamless: 1/2" NB to 24" NB; Welded: 2" NB to 48" NB |
| Wall Thickness | SCH 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS |
| Elbow Angles | 45° Elbow, 90° Elbow, 180° Return Bend |
| Radius | Long Radius (1.5D), Short Radius (1D) |
| Bending Radius (Pipe Bends) | R = 2D, 3D, 5D, 10D and custom |
| Special Types | Reducing Elbow, Long Tangent Elbow, Mitre Bend |
| Manufacturing | Seamless (WP) – hot formed / mandrel; Welded (WPW) |
| Heat Treatment | Annealed or Normalized & Tempered; WP91: N 1040–1080°C + T 730–800°C |
| Ends | Bevelled Ends as per ASME B16.25 |
| Marking | As per MSS SP-25 – grade, size, schedule, heat no. |
| Certificates | EN 10204 3.1 / 3.2, IBR, NACE MR0175, TPI Reports |
Grades available for alloy steel elbows
| Grade | ASTM / ASME | UNS | EN | W.Nr. | JIS | Matching Pipe / Forging |
|---|---|---|---|---|---|---|
| WP5 | A234 / SA234 WP5 | K41545 | X11CrMo5 | 1.7362 | STPA 25 | A335 P5 / A182 F5 |
| WP9 | A234 / SA234 WP9 | K90941 | X11CrMo9-1 | 1.7386 | STPA 26 | A335 P9 / A182 F9 |
| WP11 | A234 / SA234 WP11 | K11597 | 13CrMo4-5 | 1.7335 | STPA 23 | A335 P11 / A182 F11 |
| WP22 | A234 / SA234 WP22 | K21590 | 10CrMo9-10 | 1.7380 | STPA 24 | A335 P22 / A182 F22 |
| WP91 | A234 / SA234 WP91 | K90901 | X10CrMoVNb9-1 | 1.4903 | STPA 28 | A335 P91 / A182 F91 |
Weight %, as per ASTM A234
| Grade | C | Mn | P | S | Si | Cr | Mo | Others |
|---|---|---|---|---|---|---|---|---|
| WP5 | 0.15 max | 0.30 – 0.60 | 0.040 max | 0.030 max | 0.50 max | 4.0 – 6.0 | 0.44 – 0.65 | – |
| WP9 | 0.15 max | 0.30 – 0.60 | 0.030 max | 0.030 max | 1.00 max | 8.0 – 10.0 | 0.90 – 1.10 | – |
| WP11 Cl.1 | 0.05 – 0.15 | 0.30 – 0.60 | 0.030 max | 0.030 max | 0.50 – 1.00 | 1.00 – 1.50 | 0.44 – 0.65 | – |
| WP11 Cl.2 / Cl.3 | 0.05 – 0.20 | 0.30 – 0.80 | 0.040 max | 0.040 max | 0.50 – 1.00 | 1.00 – 1.50 | 0.44 – 0.65 | – |
| WP22 Cl.1 / Cl.3 | 0.05 – 0.15 | 0.30 – 0.60 | 0.040 max | 0.040 max | 0.50 max | 1.90 – 2.60 | 0.87 – 1.13 | – |
| WP91 | 0.08 – 0.12 | 0.30 – 0.60 | 0.020 max | 0.010 max | 0.20 – 0.50 | 8.0 – 9.5 | 0.85 – 1.05 | Ni 0.40 max, V 0.18–0.25, Nb 0.06–0.10, N 0.03–0.07, Al 0.02 max |
Values at room temperature as per ASTM A234
| Grade | Tensile Strength | Yield Strength (min) | Elongation (Long.) | Elongation (Trans.) | Hardness (max) |
|---|---|---|---|---|---|
| WP5 Cl.1 / WP9 Cl.1 | 415 – 585 MPa (60 – 85 ksi) | 205 MPa (30 ksi) | 30% | 20% | 217 HB |
| WP5 Cl.3 / WP9 Cl.3 | 485 – 655 MPa (70 – 95 ksi) | 275 MPa (40 ksi) | 22% | 14% | 217 HB |
| WP11 Cl.1 | 415 – 585 MPa (60 – 85 ksi) | 205 MPa (30 ksi) | 30% | 20% | 197 HB |
| WP11 Cl.2 | 485 – 655 MPa (70 – 95 ksi) | 275 MPa (40 ksi) | 22% | 14% | 197 HB |
| WP11 Cl.3 | 520 – 690 MPa (75 – 100 ksi) | 310 MPa (45 ksi) | 22% | 14% | 197 HB |
| WP22 Cl.1 | 415 – 585 MPa (60 – 85 ksi) | 205 MPa (30 ksi) | 30% | 20% | 197 HB |
| WP22 Cl.3 | 485 – 655 MPa (70 – 95 ksi) | 275 MPa (40 ksi) | 22% | 14% | 197 HB |
| WP91 | 620 – 840 MPa (90 – 120 ksi) | 415 MPa (60 ksi) | 20% | – | 248 HB |
Typical values (for reference)
| Property | WP5 | WP9 | WP11 | WP22 | WP91 |
|---|---|---|---|---|---|
| Density (g/cm³) | 7.70 | 7.67 | 7.75 | 7.80 | 7.77 |
| Modulus of Elasticity (GPa) | 205 | 205 | 205 | 205 | 218 |
| Thermal Conductivity, 100°C (W/m·K) | 33 | 26 | 37 | 36 | 26 |
| Mean Thermal Expansion, 20–300°C (µm/m·°C) | 11.9 | 11.5 | 12.4 | 12.6 | 11.4 |
| Specific Heat (J/g·°C) | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 |
| Approx. Max. Service Temperature | ≈ 650 °C | ≈ 650 °C | ≈ 595 °C | ≈ 600 °C | ≈ 650 °C |
| ASME P-Number | 5B | 5B | 4 | 5A | 15E |
As per ASME B16.9 / B16.28 – center-to-end dimensions in mm
| NPS | OD at Bevel | 90° LR (A) | 90° SR (A) | 45° LR (B) | 180° LR Center-to-Center (O) | 180° LR Back-to-Face (K) |
|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 38 | – | 16 | 76 | 48 |
| 3/4" | 26.7 | 38 | – | 19 | 76 | 51 |
| 1" | 33.4 | 38 | 25 | 22 | 76 | 56 |
| 1 1/4" | 42.2 | 48 | 32 | 25 | 95 | 70 |
| 1 1/2" | 48.3 | 57 | 38 | 29 | 114 | 83 |
| 2" | 60.3 | 76 | 51 | 35 | 152 | 106 |
| 2 1/2" | 73.0 | 95 | 64 | 44 | 190 | 132 |
| 3" | 88.9 | 114 | 76 | 51 | 229 | 159 |
| 4" | 114.3 | 152 | 102 | 64 | 305 | 210 |
| 5" | 141.3 | 190 | 127 | 79 | 381 | 262 |
| 6" | 168.3 | 229 | 152 | 95 | 457 | 313 |
| 8" | 219.1 | 305 | 203 | 127 | 610 | 414 |
| 10" | 273.1 | 381 | 254 | 159 | 762 | 518 |
| 12" | 323.9 | 457 | 305 | 190 | 914 | 619 |
| 14" | 355.6 | 533 | 356 | 222 | 1067 | 711 |
| 16" | 406.4 | 610 | 406 | 254 | 1219 | 813 |
| 18" | 457.0 | 686 | 457 | 286 | 1372 | 914 |
| 20" | 508.0 | 762 | 508 | 318 | 1524 | 1016 |
| 22" | 559.0 | 838 | 559 | 343 | – | – |
| 24" | 610.0 | 914 | 610 | 381 | 1829 | 1219 |
All dimensions in mm. LR = Long Radius (1.5D), SR = Short Radius (1D). A and B = center-to-end; O = center-to-center; K = back-to-face. Wall thickness is matched to the specified pipe schedule.
Where alloy steel elbows are used
Main steam and hot reheat line routing around turbines and boilers.
180° return bends in refinery fired heater coils.
Transfer lines and hot hydrocarbon process piping.
U-bend and return circuits in high-temperature exchangers.
Cracker and reformer piping requiring creep strength.
Superheater links, headers and HRSG interconnecting piping.
